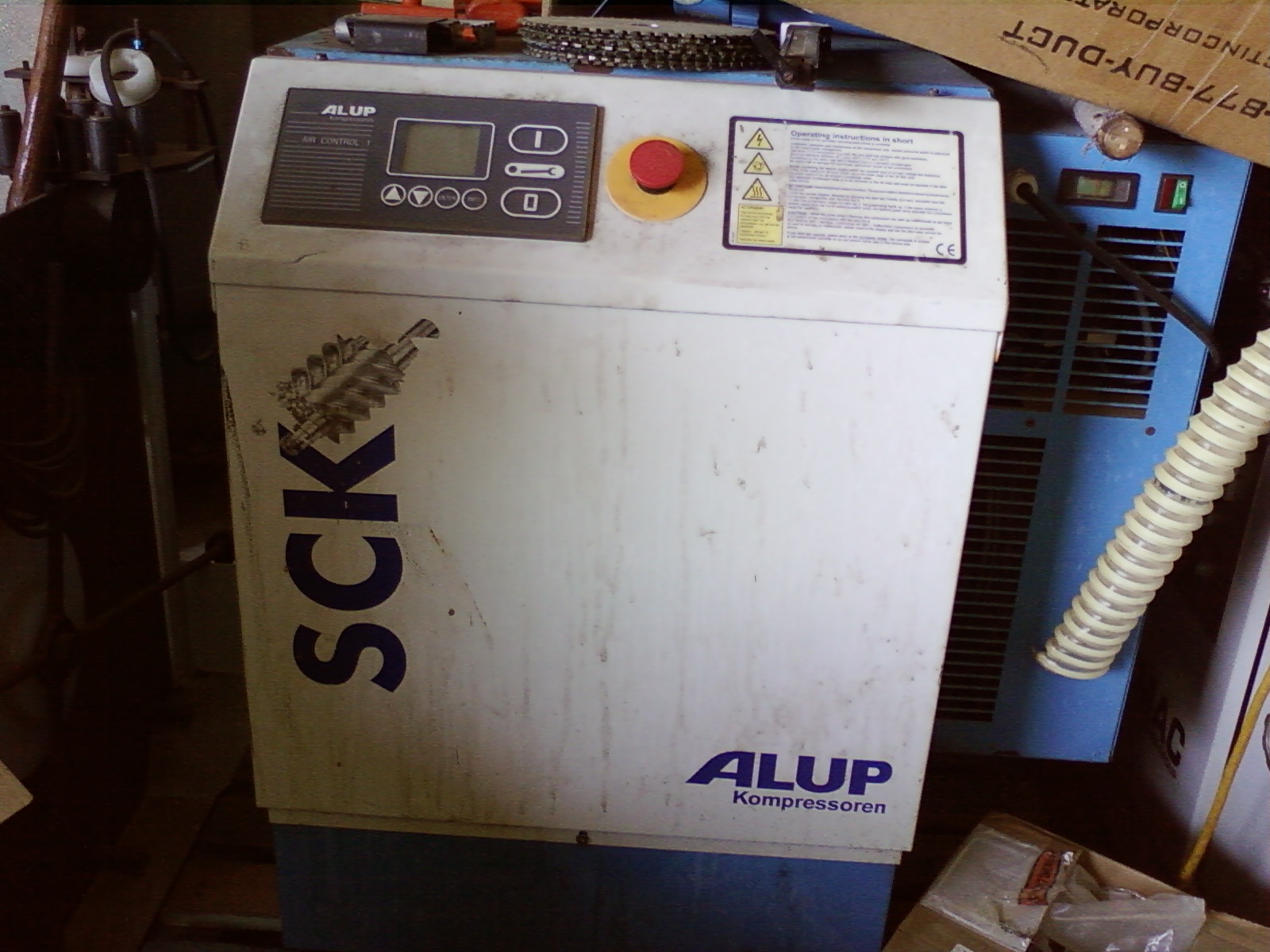

ALUP Air Compressor (screw type) with Dryer



Its a SCK 15.Very low hours and a 2004 model. Have all the books and just serviced. Includes built-in AC dryer.

The cost is $4000



Screw Compressors

SCK 5-52 - 5-50 HP Belt Drive



INTELLIGENCE, INNOVATION, RELIABILITY

Screw Compressors
SCK 5-52



bulletThe small power package
bulletSmall, compact, powerful
bulletMultiple configurations available
bulletClear, maintenance-friendly design
bulletSuper sound insulation as standard feature
bulletIntelligent microprocessor controls
bullet
Optimal system efficiency
Maximum benefits for our customers:
This premise holds true for everyone at ALUP.
Our products benefit from the latest techniques in research and development and are manufactured according to ISO 9001.
They fulfil all acceptance criteria according to ASME, OHSA, ISO 1217 – 3 annex C – 1996
and CE-guidelines.
Even the most stringent conditions, such as DET NORSKE VERITAS, GERMANISCHER LLOYD, BUREAU VERITAS, LLOYD’S REGISTER OF SHIPPING, ABS among others, are for us at ALUP a matter of course.


ASSEMBLY, TECHNIQUE, HIGHLIGHTS
1 Separation system
Highest compressed air quality through proven
multi-stage separation
2. Air Control
The intelligence of the compressor; thinks, monitors,
records (available in two versions)
3. Drive system
Highly efficient, reliable V-belt drive
4- Air end
High performance, excellent efficiency, proprietary design

5- Cooling system
Large surface-area radiators for low compressed air outlet temperatures and optimum thermostat-controlled coolant temperatures
6- Fan
Powerful, efficient, high-performance
7- Drive motor
Robust drive motor with reserves



DATA, FACTS, ANALYSIS
Type
Air flow according to
ISO 1217 (annex C-1996)
Motor
power
Noise
level

Length
Width
Height
Weight
100 PSI
CFM

125 PSI
CFM

150 PSI
CFM
HP
dB(A)
in
in
in
Lbs
SCK 5
24.6
23.2
20.1
5.5
66
37.2
23.8
35.4
419
SCK 8
31.4
28.1
26.6
7.5
66
37.2
23.8
35.4
419
SCK 10
44.5
39.6
37.4
10
68
37.2
23.8
35.4
452
SCK 15
64.0
60.0
52.5
15
72
37.2
23.8
35.4
485
SCK 21
97.1
86.7
82.6
20
71
50.0
31.3
46.1
959
SCK 26
112.7
100.7
94.3
25
71
50.0
31.3
46.1
992
SCK 31
127.2
119.8
111.7
30
72
50.0
31.3
46.1
1069
SCK 42
174.0
156.0
148.0
40
77
50.0
31.3
46.1
1279
SCK 52
–
185.4
176.4
50
74
50.0
31.3
46.1
1312
pressures up to 190 psi available
SCK 5 – 52 also available as “PLUS” version (with attached refrigeration dryer)
ALUP Air Control
The microprocessor safely monitors all functions.
Control, regulate, monitor, earlywarning and in ”extreme cases” – failure diagnosis – these are the main tasks for the ”brain” of your compressor, a standard feature of all our screw compressors.
Air Control 1 standard
Air Control 3 is optional.
COMPATIBILITY, FLEXIBILITY, DIVERSITY
