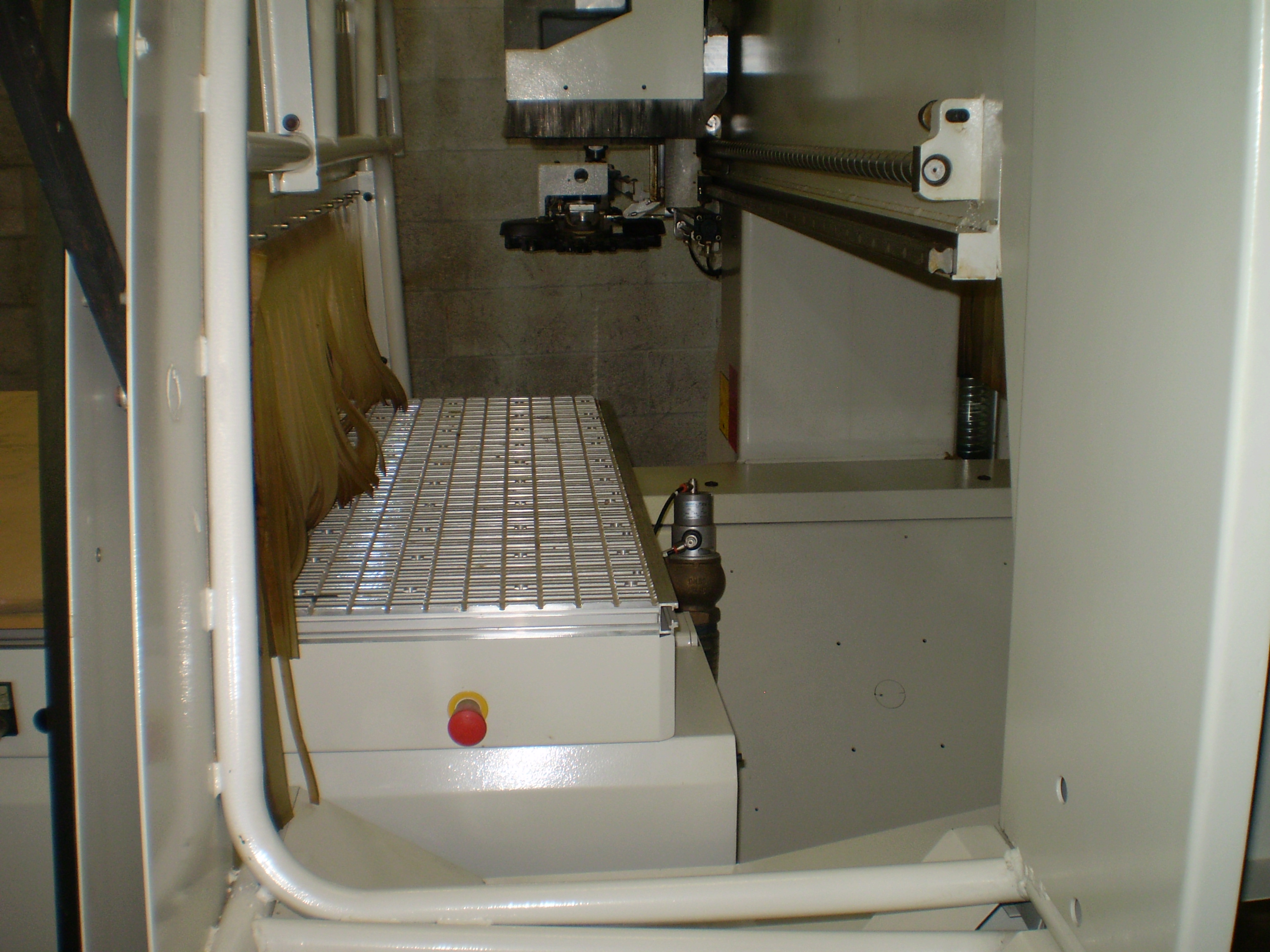

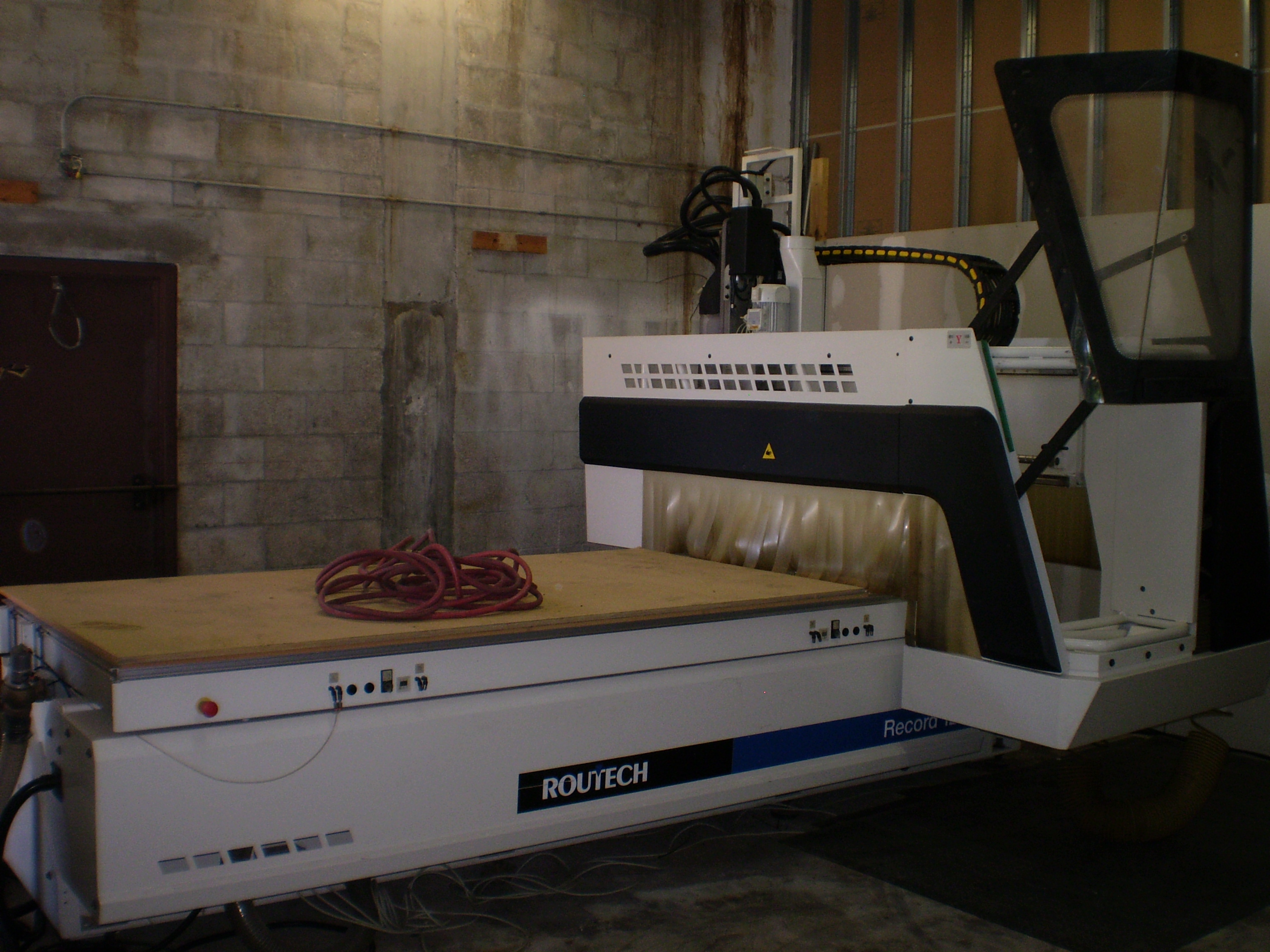

-Single 120" x 48 stationary aluminum table machined with a square grid
pattern for fixture parts:grid pattern allows use of vacuum pods or closed cell
rope gasketing material and use of spoil-boards for "nested based machining"
-stroke travel of X-axis 133.8" , Y-axis 67.7" & Z-axis is 11.8"

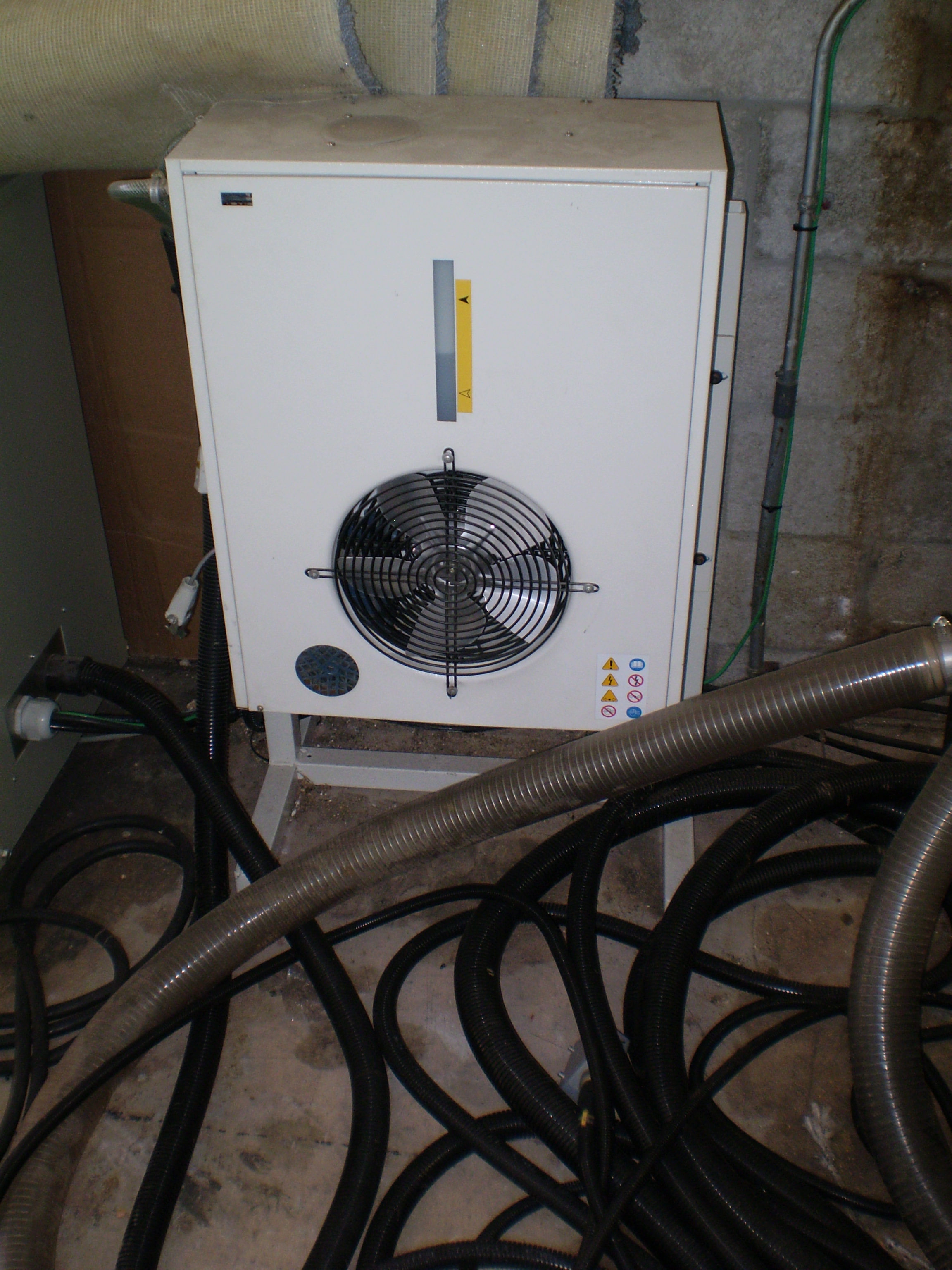

-Equipped with: (1) 15 HP Liquid cooled "Power 2000" Electro spindle W/lifetime
lubrication & HSK 63F-tool coupling using ER-32 collets,spindle speeds from
900-18,000 RPM,and a 12-position ATC tool carousel.

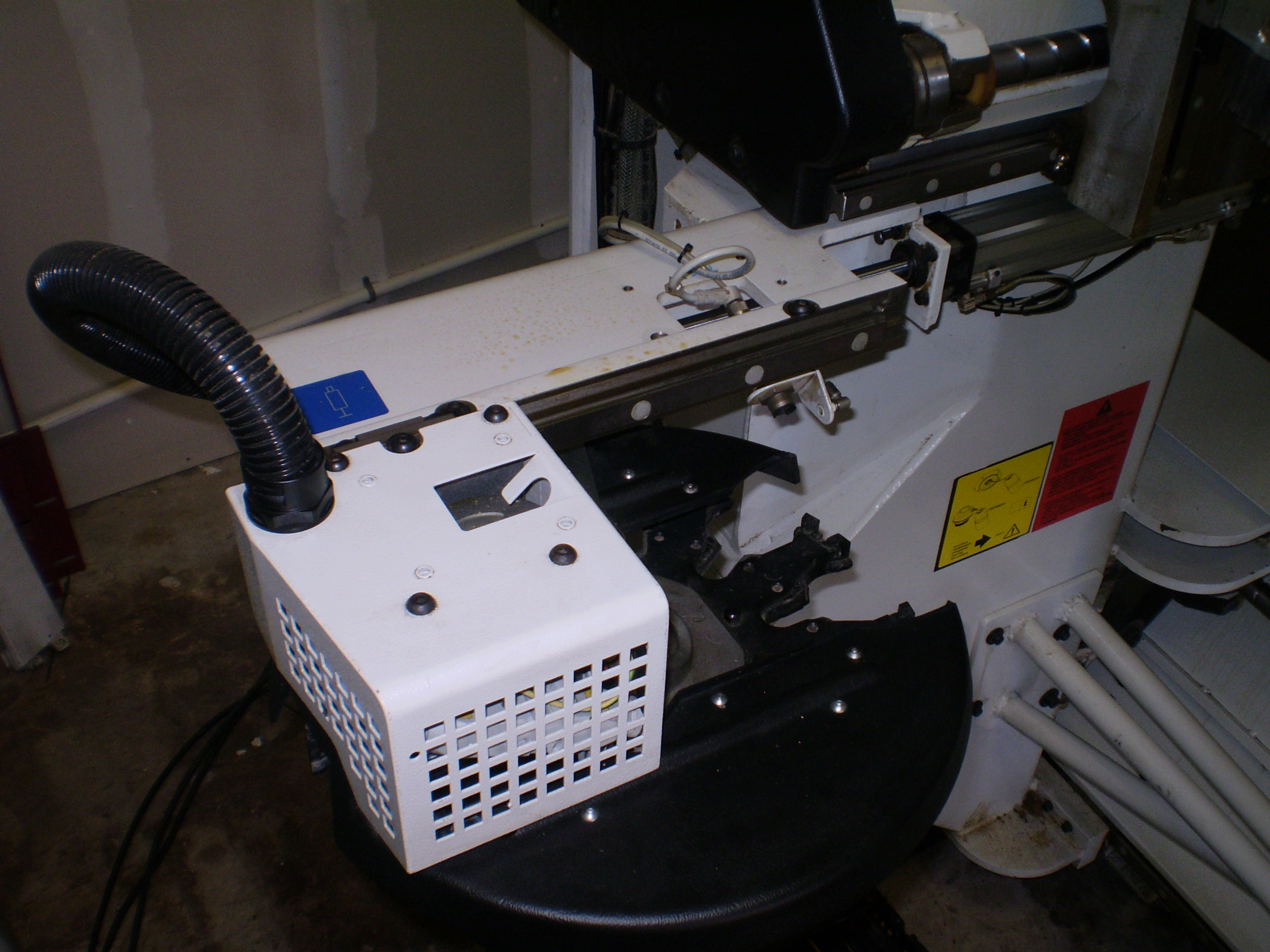

-(1) 18-spindle boring head (12 vertical & 6 horizontal)
-Closed loop AC servo drive system driving precision ground ball screws for
positioning feed rates up to 1,500 IPM: all axis ride on extra large precision
profile linear guideways.

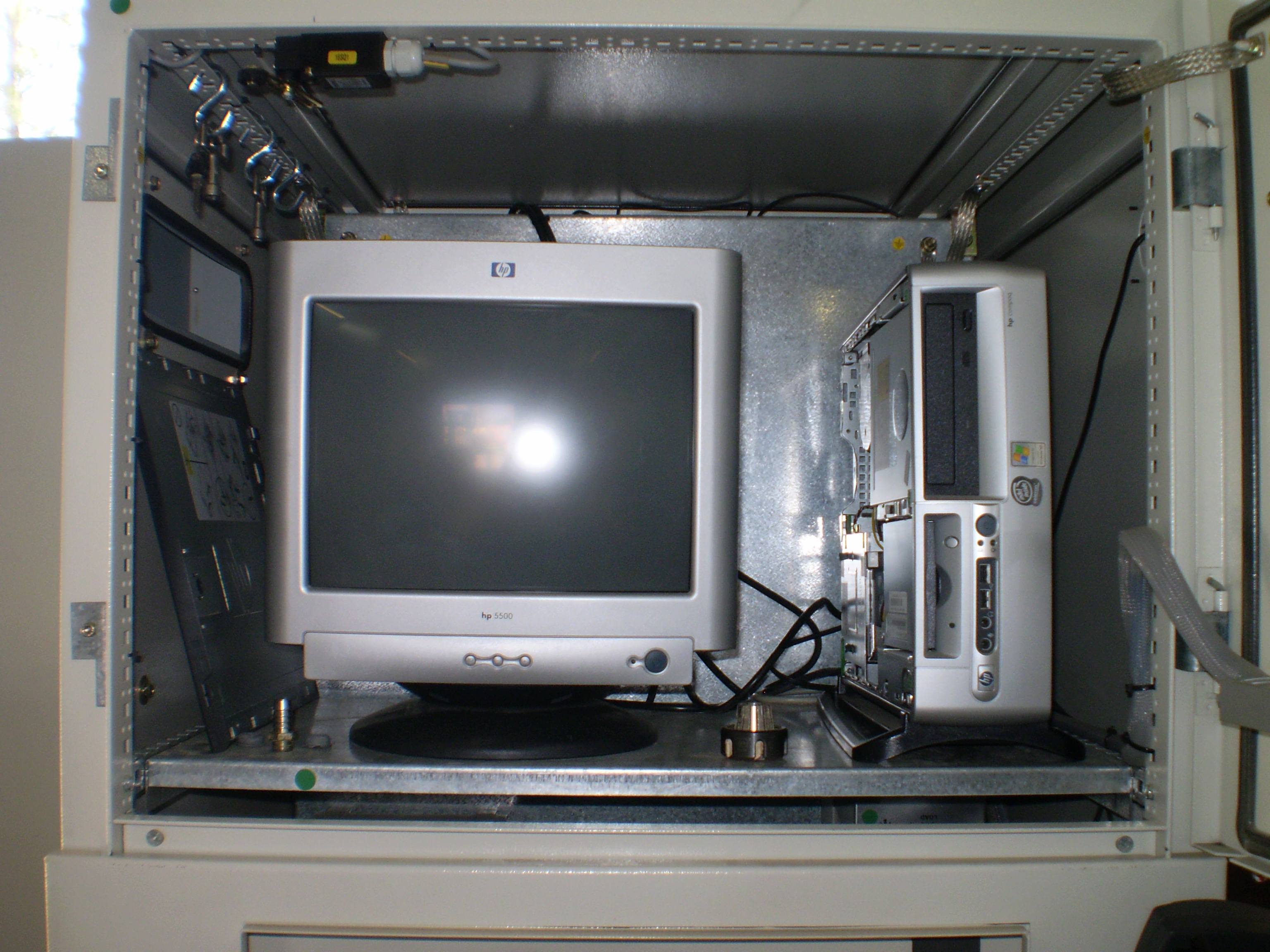

-"NUM 1000 CNC PC-Based controller with "XILOG PLUS interface by SCM" featuring
:(3) Axes simultaneous control with feed rate & spindle speed override, 15" high
resolution CRT and Windows-based operating environment.
-Complete with:(2) 10 HP vacuum pumps,an assortment of tool holders,diamond
tooling,collets,safety matts,ASPAN software, and original manuals
-Machine is setup and powered ready for demo call 561-718-9615 or 561-718-9616
for more info
