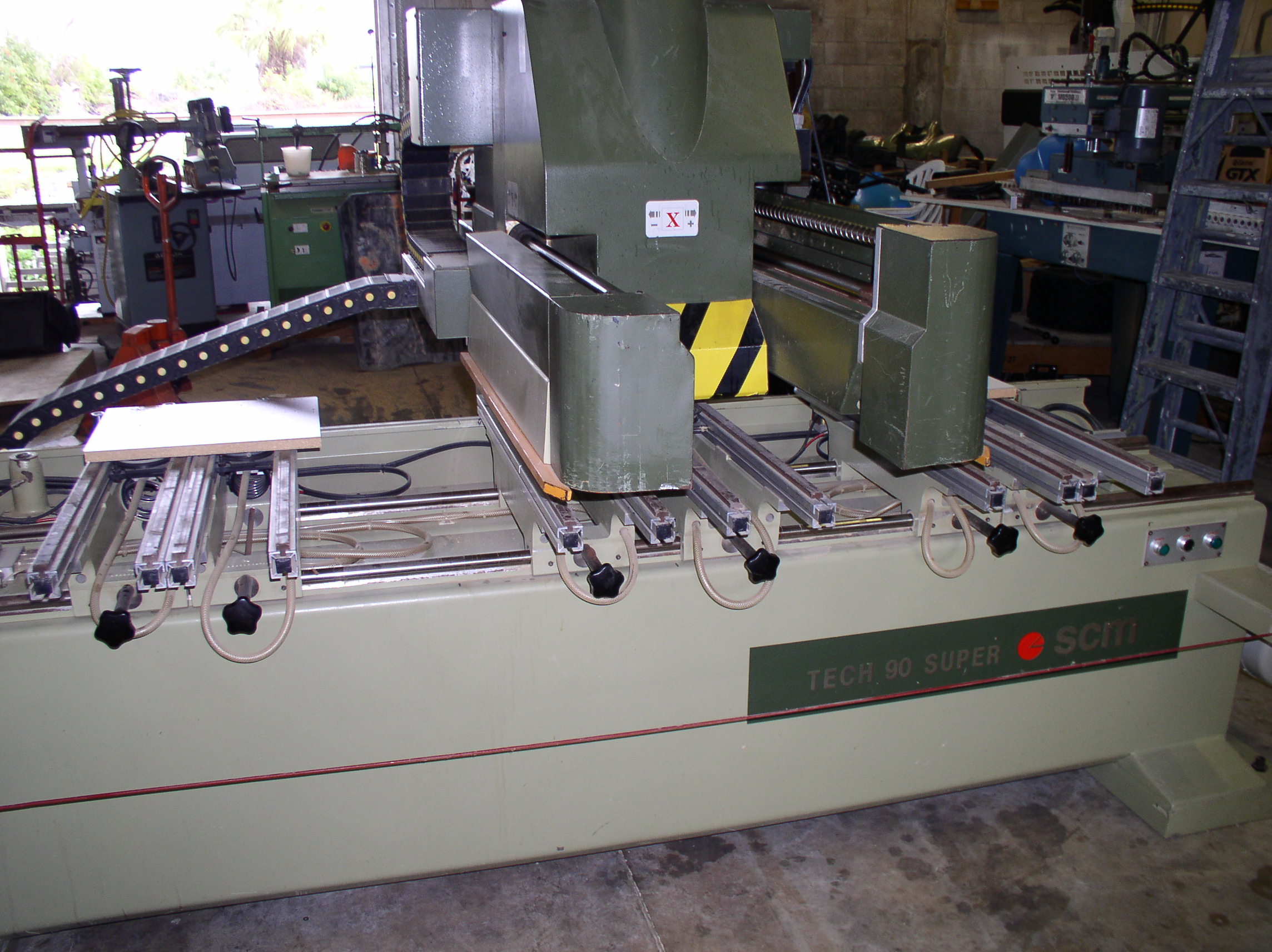

Scmi Tech 90 Super

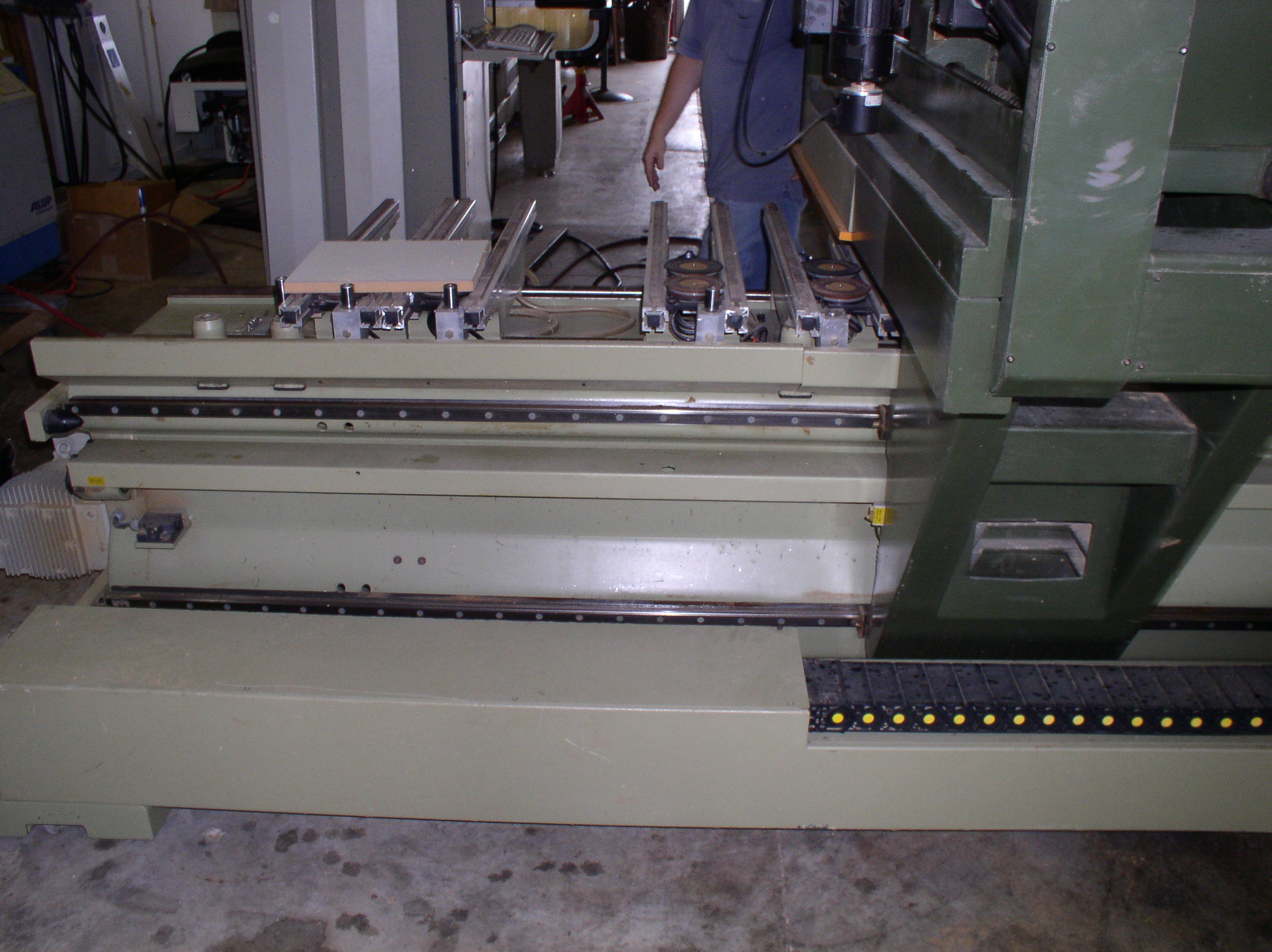

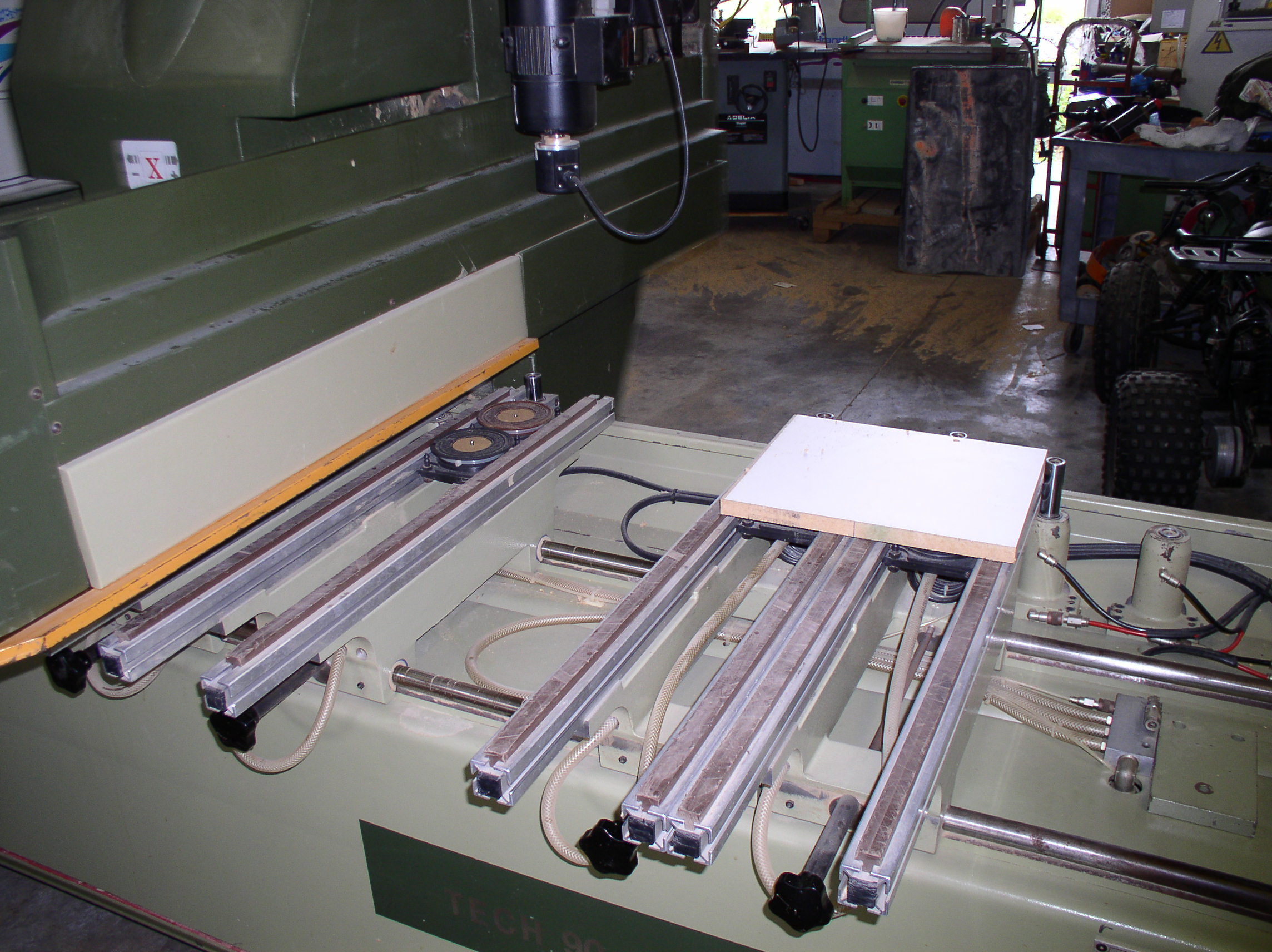

-Working cap 2150 mm (84 5/8") x 800mm (31 1/2") working area with 6 movable panal supports, each with 2 vacuum cups,2 1/8" max panel thickness.

-Boring unit with 9 independent vertical spindles at 32mm center distance of which 5 spindles are in a row along the "Y" axis and 4 are positioned next to spindle #1 & #2 on the "X" axis; 1 horizontal boring head with 2 opposed spindles on the "X" axis,for edge drilling into the right and left panel edge;(1) 4.5 HP-16,000 RPM router with MK-2 spindle, and (1) 1 1.5 HP-6000 RPM Grooving saw,120 mm dia. grooving cutter,for "X" grooving; 230 FPM max. positioning speed on "X" and "Y" axis and 59 FPM max. positioning speed on the "Z" axis

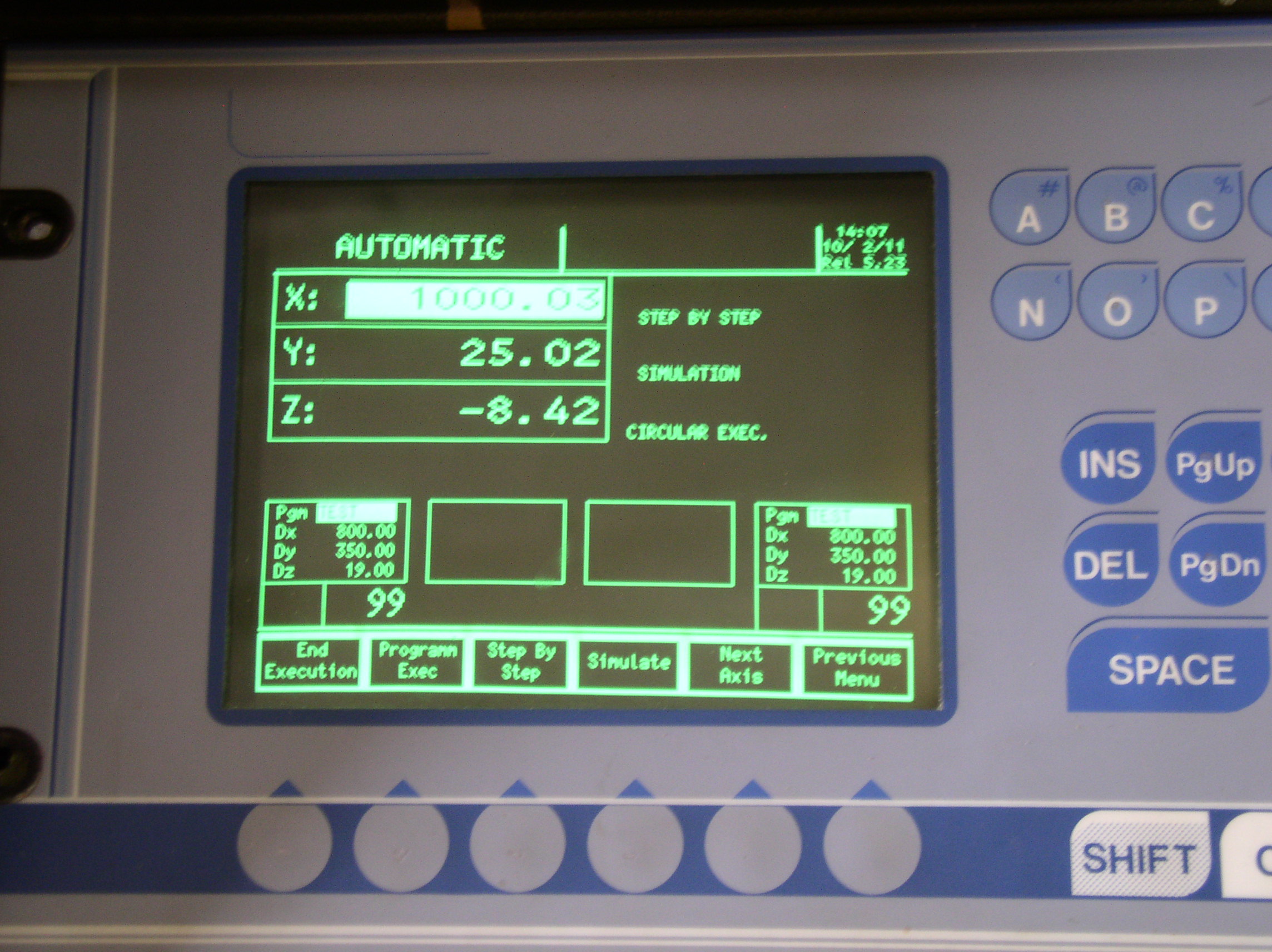

-"TRIA" NC controller with : 32 Bit Microprocessor, 256 KB user RAM storage,8" graphic display monitor , 2 serial ports for direct link and a 3.5" floppy disk drive,alpha-numerical keyboard; features linear & circular interpolation ,English, Spanish, Italian operating language and programming on MS-DOS based office PC w/transfer on floppy disk or direct link.

-Equipped with rear, lateral & central pneumatic stops with double-zero reference, buffer battery fro 1000 hrs. and 40 cu/M cap. vacuum pump

-Machine is setup and powered ready for demo call 561-718-9615 or 561-718-9616 for more info
